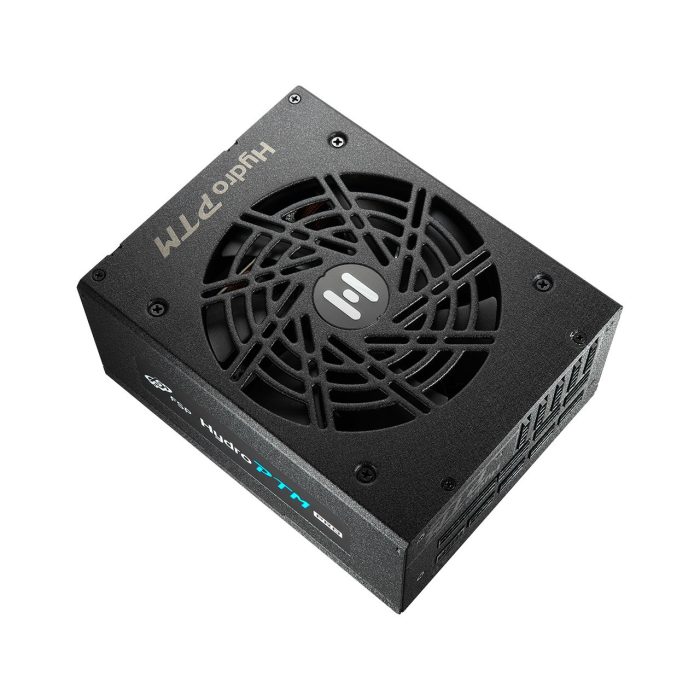

FSP Hydro PTM Pro ATX3.0(PCIe) 1200w Fully Modular PSU

The Hydro PTM PRO 1200W ATX Fully Modular Power Supply has a fully modular design with all-black coated ribbon cables for a more aesthetically pleasing solution. The HYDRO PTM Pro series includes an FDB fan and an intelligent 0dBA function to reduce noise and provide longer life. Furthermore, the fan has a longer lifespan than a regular fan. Hydro PTM Pro series power supplies have 80 Plus Platinum Certification, which implies they consume less heat and have a reduced running cost. At 50% load, the power supplies are guaranteed to perform at a minimum efficiency of 92%.

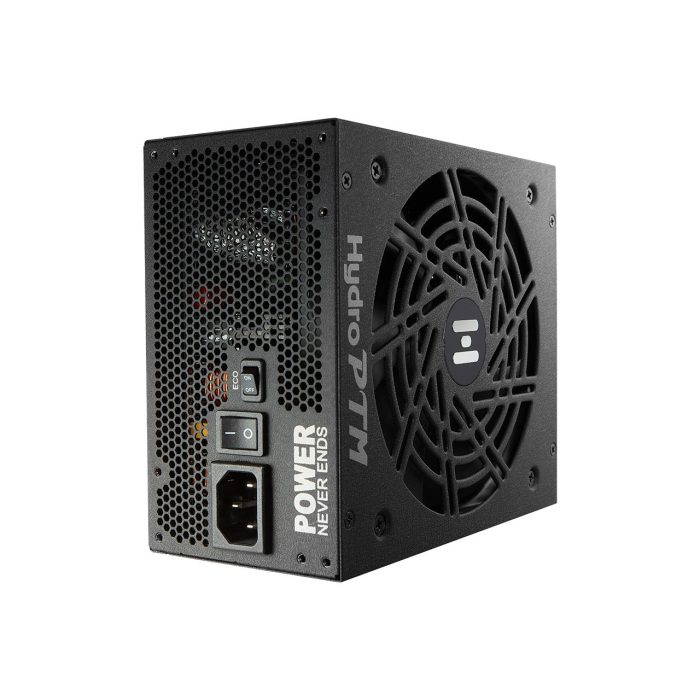

The series includes a native PCIe5.0 connector as well as 4 x PCIe 6+2Pin slots for graphics cards and 2 x CPU connector slots for increased performance. The HYDRO PTM Pro series has highly tight voltage regulation, with output voltage regulation of less than +/- 1% above 10% load change and superior efficiency and voltage stability. When the Eco Button is turned on, the PSU consumes less power and runs quietly. When the power supply is under 30% load, the fan in the power supply will not run, resulting in a silent state.

FEATURES:

• Complies with ATX12V V3.0 & EPS12V V2.92
• Intel’s Latest CPU ready
• Global Safety Approved
• High efficiency ≧ 92%
• Powerful +12V single rail design
• Quiet and durable cooling
• Full Japanese electrolytic capacitors
• Intelligent fan speed control circuit design
• Full protections OCP, OVP, SCP, OPP, OTP, UVP
• High Wattages with 80PLUS® Platinum Certification
• Unique product ID with changeable side stickers for DIY enthusiasts and gamers

SPECIFICATIONS:

• Rated Output Power: 1200W
• Form Factor: ATX
• 80 PLUS Certification: 80 PLUS® Platinum
• Input Voltage: 100-240V
• Input Current: 14-9A
• Input Frequency: 50-60Hz
• PFC: Active PFC
• Efficiency: 92%
• Fan Type: FBD Fan, 13.5 cm
• Protection: OCP, OVP, OPP, SCP

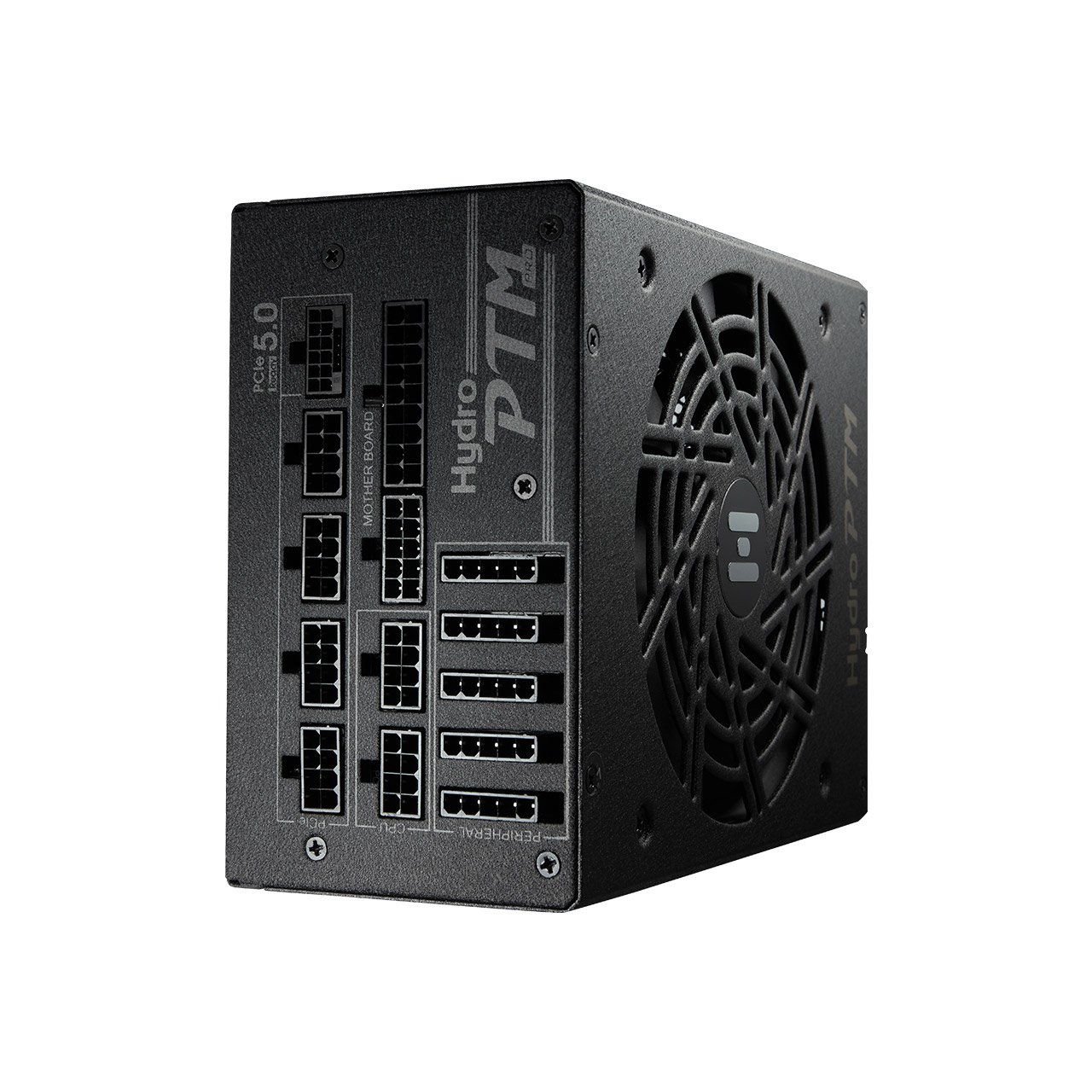

• Cable Connections:
• ATX 20+4 x 1
• 4+4 PIN x 3
• 12VHPWR x 1
• PCI-E 6+2 x 6
• SATA x 14
• Molex (PERIPHERAL) x 5
• Floppy x 1
• Dimensions: 15 x 19 x 8.6 cm

WHAT’S IN THE BOX:

• FSP Hydro PTM Pro 1200W ATX Fully-Modular Power Supply – Black x1
